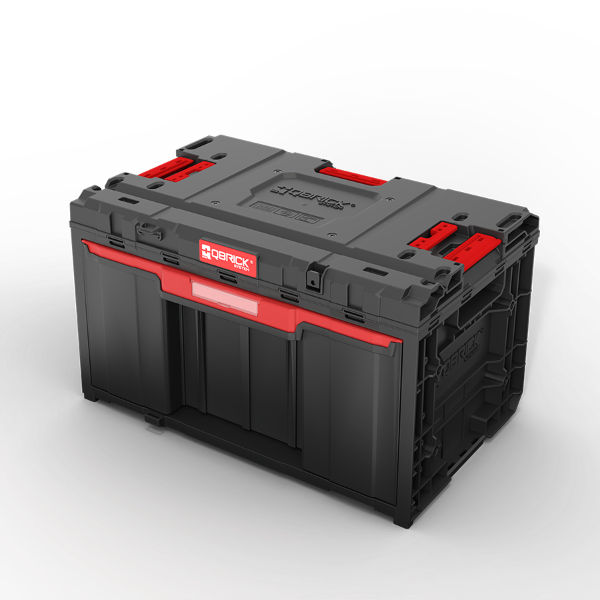

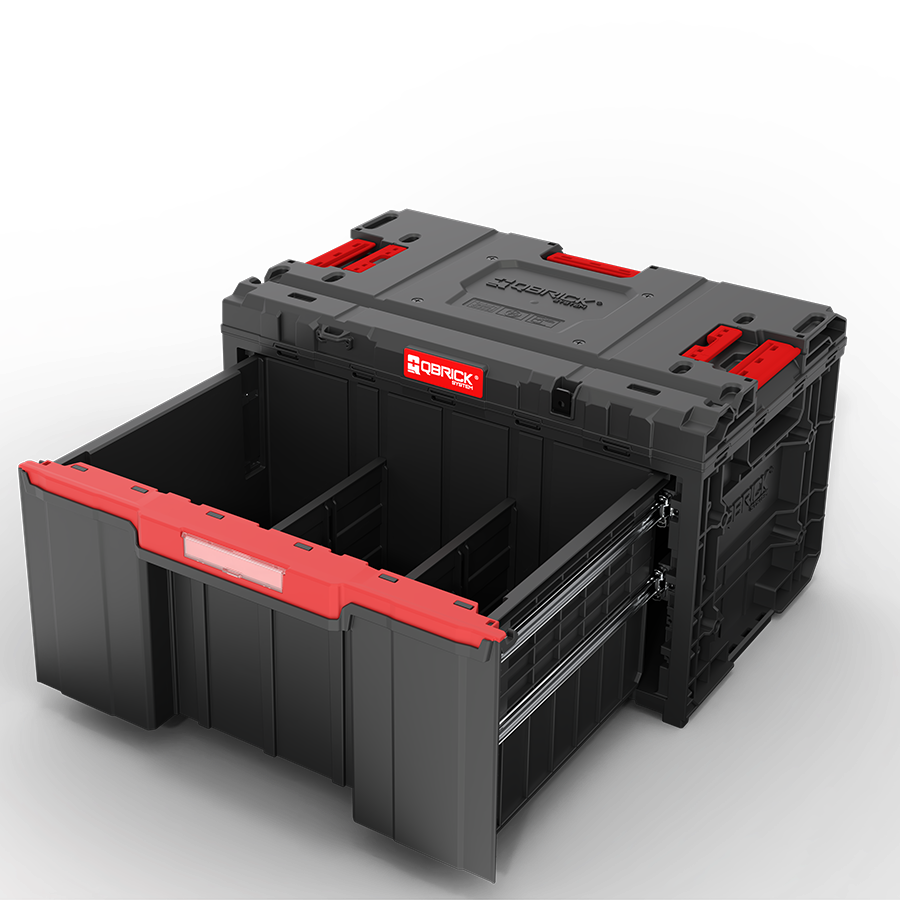

Qbrick System ONE Drawer 1 Toolbox is the largest, most capacious, modular toolbox. The drawer is equipped with one drawer that slides out on two metal guides.
A convenient button provides easy access to its contents. The drawer is equipped with two compartments made of ABS, which can be adjusted in 5 positions, creating convenient compartments for storing tools. Polyamide side connectors and one rear connector allow easy connection with other modules from the ONE line. The Vario cover also allows you to connect the drawer to the PRO system. Comfortable side handles in the body ensure convenient carrying of the module. Tool identification is provided by a place for a label protected by a polycarbonate cover. Bodies adapted for mounting threaded inserts in size M8 allow for any personalization of the system to suit the user’s needs. Additionally, at the back of the body there are places to hang the module on the wall. The maximum load capacity of the drawer is 18 kg. The capacity is 32.5 litres. In order to protect the drawer against theft of its contents, a steel bolt adapted for the use of a padlock is used. Qbrick System ONE Drawer are not compatible with ONE Transport Platform 1.0. ONE Transport Platform 2.0 Allterrain and Workshop are dedicated to them.
Attention! The QB ONE BOX 2.0 and QB ONE BOX 2.0 Plus boxes cannot be used as a base for connecting the QB ONE Drawer 1, QB ONE Drawer 2, QB ONE Drawer 2 Plus and QB ONE Drawer 3 boxes.
Dimensions (HxWxD) |
34 x 58.7 x 38cm |
Capacity |
32.5 L / 18 Kg |
Quantity on pallet |
24 |
EAN |
5901238260479 |
